The Rock Krawler Pro-X Upgrade for the Gladiator (JT) is a triangulated 4 Link rear assembly that allows removal of the rear track bar. Eliminates the cross talk of the front and rear track bars greatly smoothing the on highway ride. The Pro-X rear also maintains the rear axle perfectly centered through out the suspension cycle and removes the natural suspension bind of the rear OEM 5 link arrangement. (Also, available for Dana UD60 and Dynatrac XD60 Applications)
System Benefits:
Complete Bolt in System
Excellent Highway Ride
Improved Off-Road Ability
Bolt In Triangulated 4 Link Rear
Eliminates Front and Rear Track Bar "Cross Talk"
Greatly Improved Rear Pinion Cycle w/ Equal Length Rear Upper and Lower Arms
The Rear Axle Remains Perfectly Centered
Allows for Rear Pinion Adjustment
Lifetime Warranty on All Hard Parts

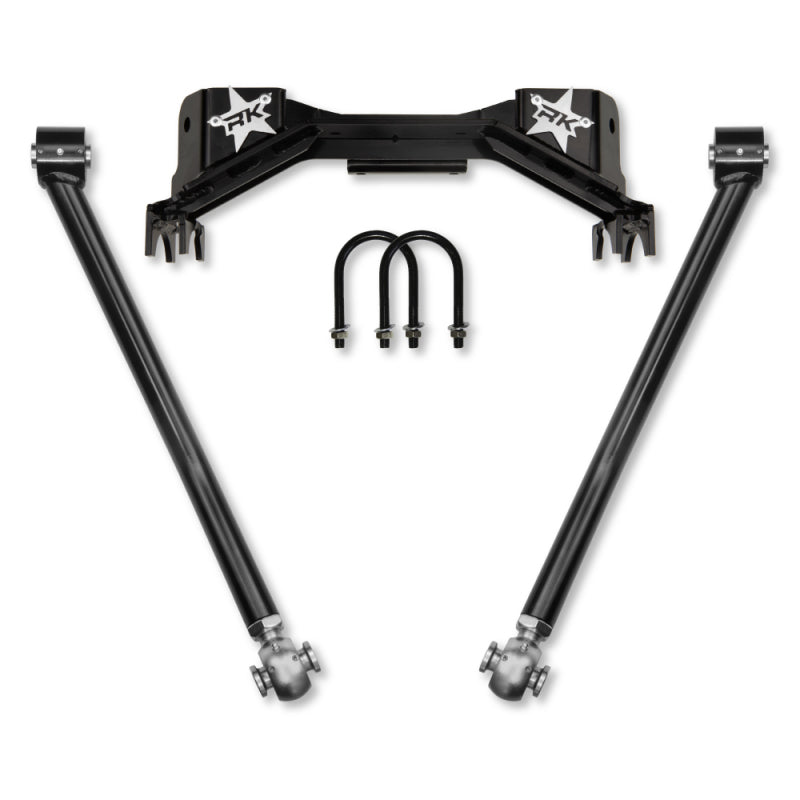

System Includes:
(2) Adjustable triangulated rear upper control arms
(1) Pro-X bolt in rear axle cradle
(1) Drill Bit and Tap Kit
General Notes:
As shown valid for OEM axles only
NOT COMPATIBLE WITH DIESEL ENGINE OPTION
If so equipped will require removal of rear shutter shock
For tires larger than 37" or hard core off-road use, welding of the rear cradle to the axle tubes is required
Valid for 3" to 5" of lift
Recommend having adjustable rear lower control arms
